Walker Holder for Moretti Ardea Mobility Scooters CNA122 – for CN2xx, up to 10 kg

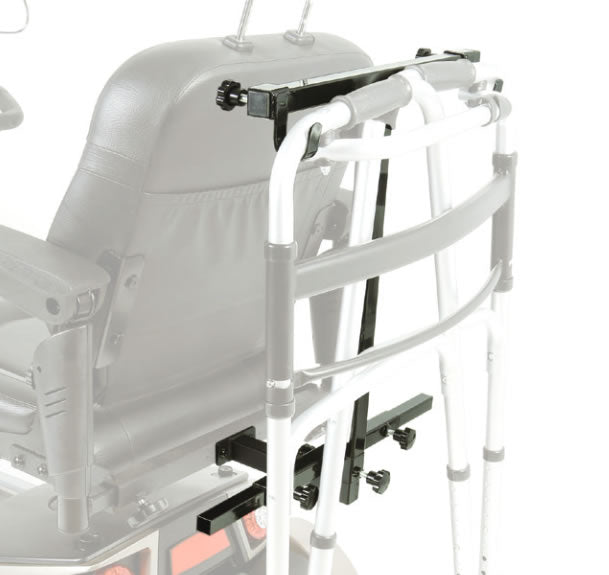

The Moretti Ardea CNA122 walker holder is an original accessory designed to transport a walking frame behind a compatible Mobility CN2xx electric scooter.

The structure attaches to the scooter’s rear bracket. The walker is placed on the shaped supports and must always be secured to the structure using the supplied hook-and-loop strap during transport.

Main benefits

Compatible electric scooters

Moretti’s official Italian product page lists compatibility with:

• Moretti Mobility CN200;
• Moretti Mobility CN210;
• Moretti Mobility CN220;
• Moretti Mobility CN230;
• Moretti Mobility CN240;
• Moretti Mobility CN250;
• Moretti Mobility CN260.

Installation and securing the walker

The official Moretti manual provides the following assembly and installation sequence:

1. Remove the cap from the scooter’s rear mounting bracket.
2. Securely fasten the main bracket to the structure.
3. Insert the designated tubes into the corresponding support and tighten the fixing knobs.
4. Insert the assembled structure into the rear bracket and tighten the knob.
5. Fit the upper support, connecting component and side hooks according to the illustrations in the manual.
6. Place the walker on the supports and adjust their position.
7. Always use the hook-and-loop strap to secure the walker to the structure during transport.

Technical specifications

Safe-use instructions

• Do not exceed the maximum permitted load of 10 kg.
• Always secure the walker with the hook-and-loop strap before driving.
• Firmly tighten every knob and fixing component.
• Ensure that the walker cannot move or fall out of the holder.
• Ensure that the walker does not obstruct lights, reflectors or other important scooter components.
• Remember that the attached walker increases the scooter’s overall length and requires additional space when manoeuvring.
• Do not use the holder if its structure is bent, damaged or loose.
• Use the product only for the purpose specified by Moretti.

Cleaning and maintenance

The official manual does not specify a special cleaning method for the CNA122. Clean the structure with a soft cloth and regularly inspect the brackets, knobs, hooks and hook-and-loop strap.

Before every use, ensure that no component is loose, deformed or damaged. If damage is found, discontinue use until the holder has been inspected and repaired.
