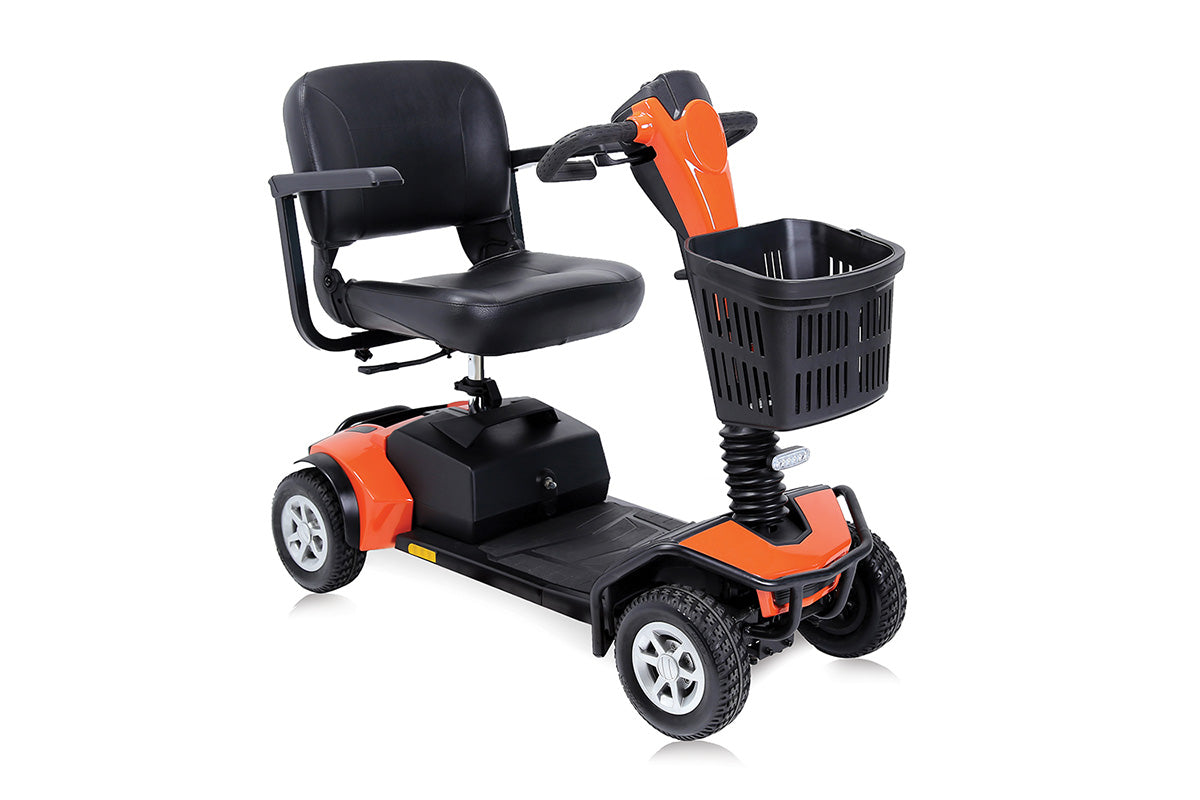

Moretti Ardea Mobility 210 CN210 Demountable Electric Scooter – 149 kg

The Moretti Ardea Mobility 210 CN210 is a compact four-wheel demountable electric scooter designed to support independent mobility for older people and users with reduced mobility. Its construction combines a durable steel frame with ABS bodywork.

A key advantage of this model is its ability to separate into individual components, making transportation and storage more convenient. The scooter is supplied with a front basket, protective bumpers, rear-view mirrors and a USB port for charging mobile devices.

The 350 W motor provides a maximum speed of 6 km/h. Two 12 V / 22 Ah batteries deliver a stated travel range of over 21 km under suitable operating conditions. The maximum user weight is 149 kg.

Main benefits

• Demountable construction for more convenient transportation and storage
• Maximum user weight of 149 kg
• 350 W motor
• Maximum speed of 6 km/h
• Stated travel range of over 21 km
• Two 12 V / 22 Ah batteries
• Durable steel frame with ABS bodywork
• Front and rear suspension
• Puncture-resistant solid PU tyres
• Padded swivel seat
• Folding backrest and armrests
• Width-adjustable armrests
• Ergonomic tilt-adjustable steering column
• Dashboard with multifunction controls
• Front LED light
• Rear-view mirrors
• Front storage basket
• USB charging port

Technical specifications

• Model: Mobility 210
• Product codes: CN210x, CN210A and CN210B
• Brand: Ardea Mobility by Moretti
• Construction: steel frame with ABS bodywork
• Motor: 350 W
• Maximum speed: 6 km/h
• Maximum stated range: over 21 km
• Batteries: 2 × 12 V / 22 Ah
• Battery charger: 3 A, off-board, 220 V / 50 Hz
• Controller: PG S-70A
• Turning radius: 127 cm
• Maximum rated slope: 12° / 21%
• Maximum obstacle height: 8 cm
• Braking system: electromechanical
• Maximum user weight: 149 kg

Dimensions and equipment

• Approximate overall dimensions: 111 × 58 × 93 cm
• Seat width: 43 cm
• Tyre dimensions: 22 × 7.5 cm
• Tyre type: solid PU tyres
• Lighting: front LED light
• Equipment: front basket, protective bumpers and rear-view mirrors
• Connection: USB port

Comfort and adjustment

The padded seat can be rotated to make getting on and off the scooter easier. The backrest and armrests can be folded, while the armrest width can be adjusted according to the user’s individual requirements.

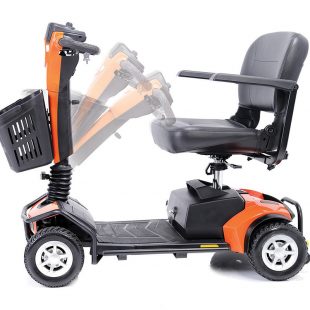

The ergonomic steering column offers angle adjustment. Front and rear suspension help provide a more comfortable ride, while the multifunction dashboard provides convenient access to the main controls.

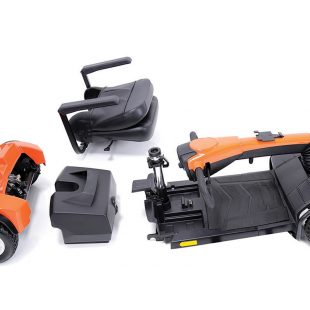

Disassembly and transportation

The scooter can be separated into several main components, including the seat, battery module and parts of the frame. Switch off the power before disassembly or assembly and follow the instructions provided in the manufacturer’s manual.

Available colours

• CN210A: orange
• CN210B: white

Important information

The actual travel range may vary depending on the user’s weight, battery condition, ambient temperature, terrain and gradient and driving style. The stated maximum slope is a rated value determined in accordance with the EN 12184 standard.

Before using the scooter for the first time, read the manufacturer’s instructions and check that all components are correctly connected, as well as the condition of the batteries, brake, tyres and operating systems.
